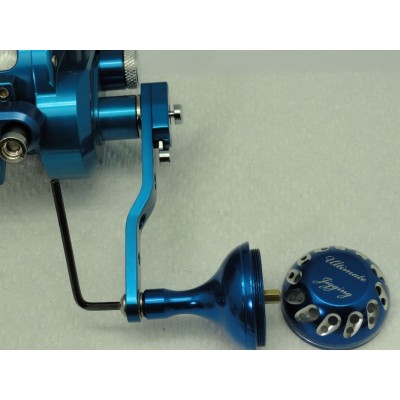

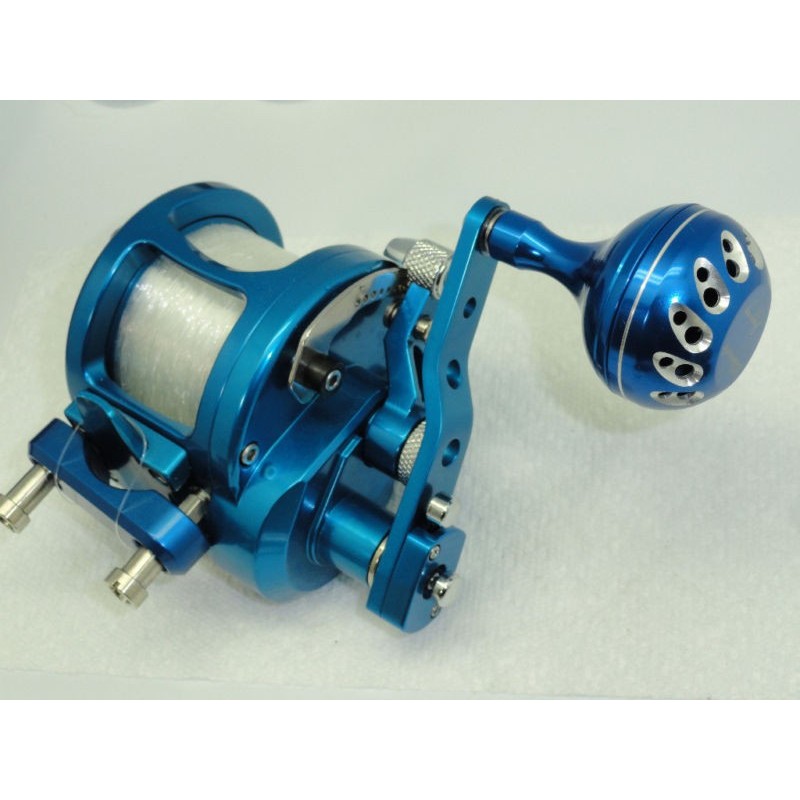

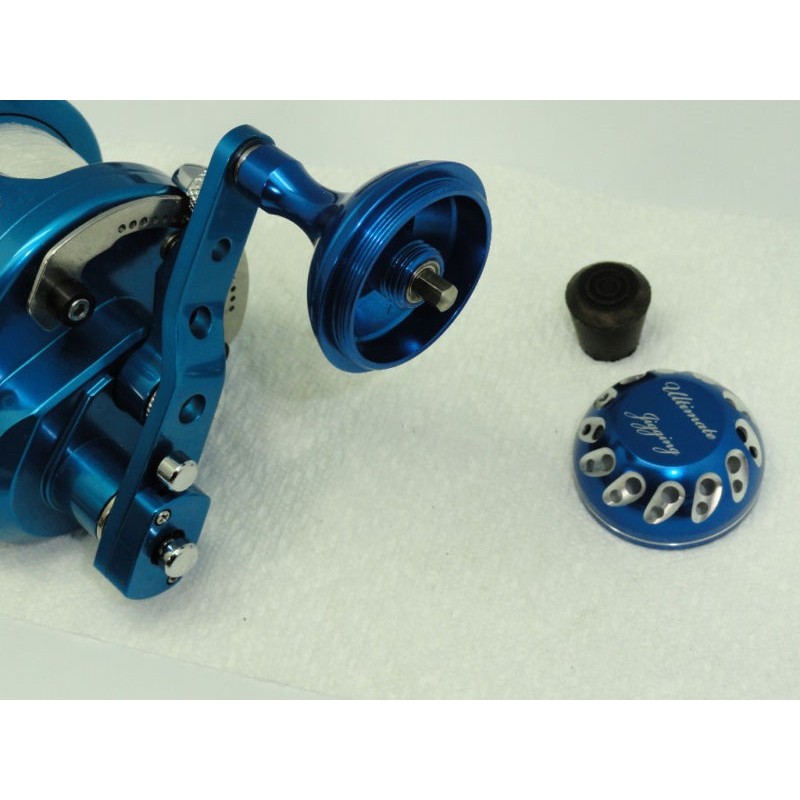

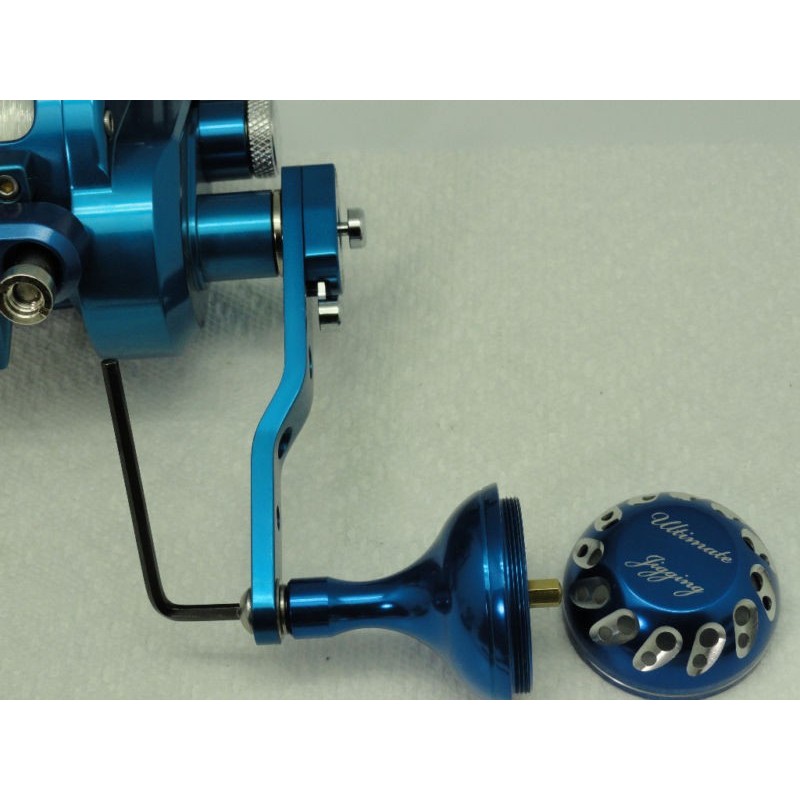

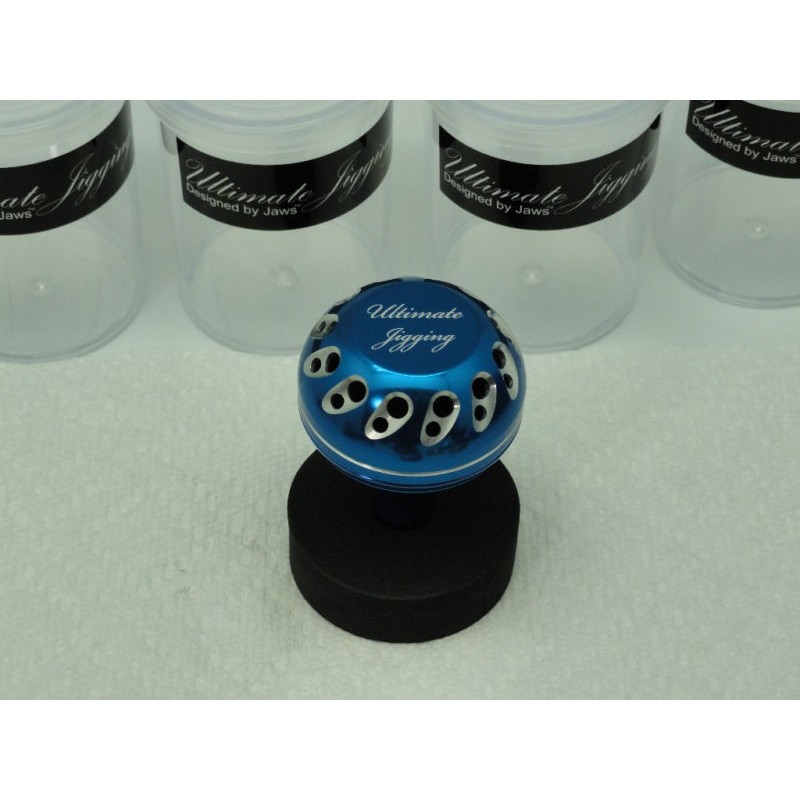

Ultimate Jigging 45mm Round Knob - Avet Model is precisely made; no play (only 0.01mm). When you install it, you must make sure every part is align and clean, then follow the diagram paper and instruction that come with the Knob to install it.

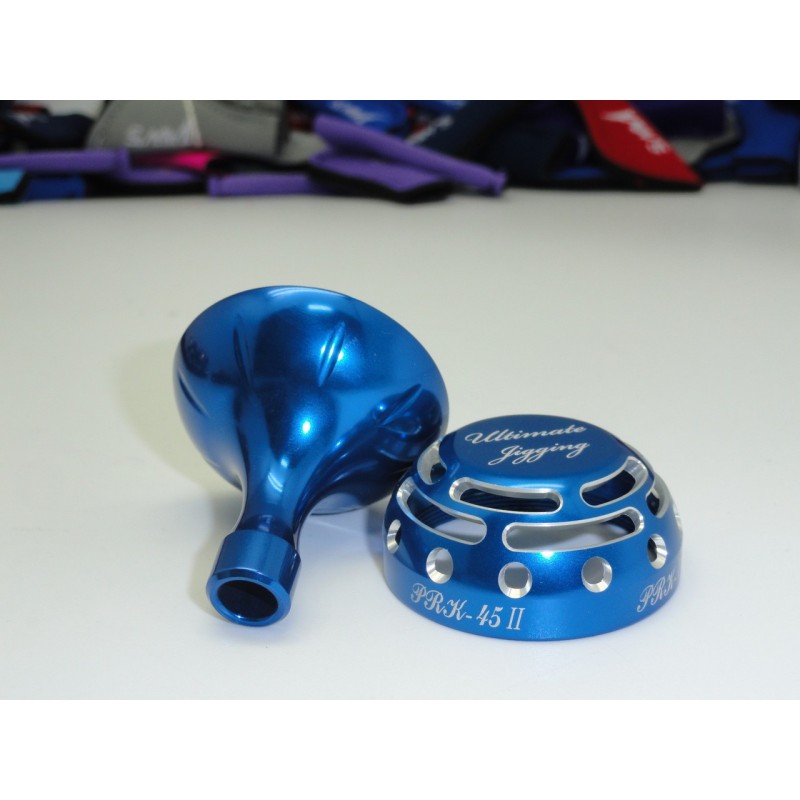

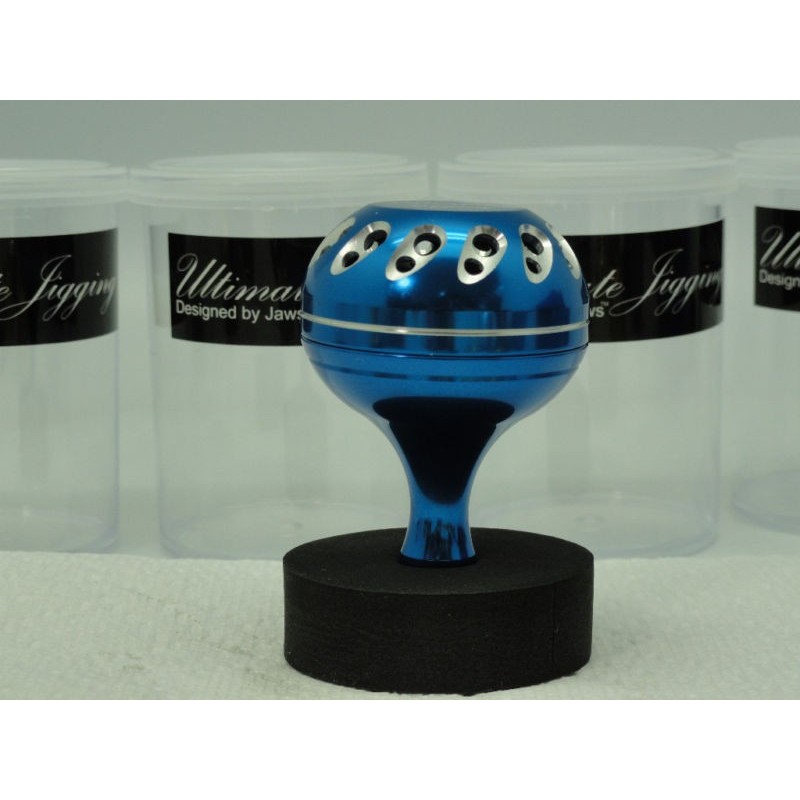

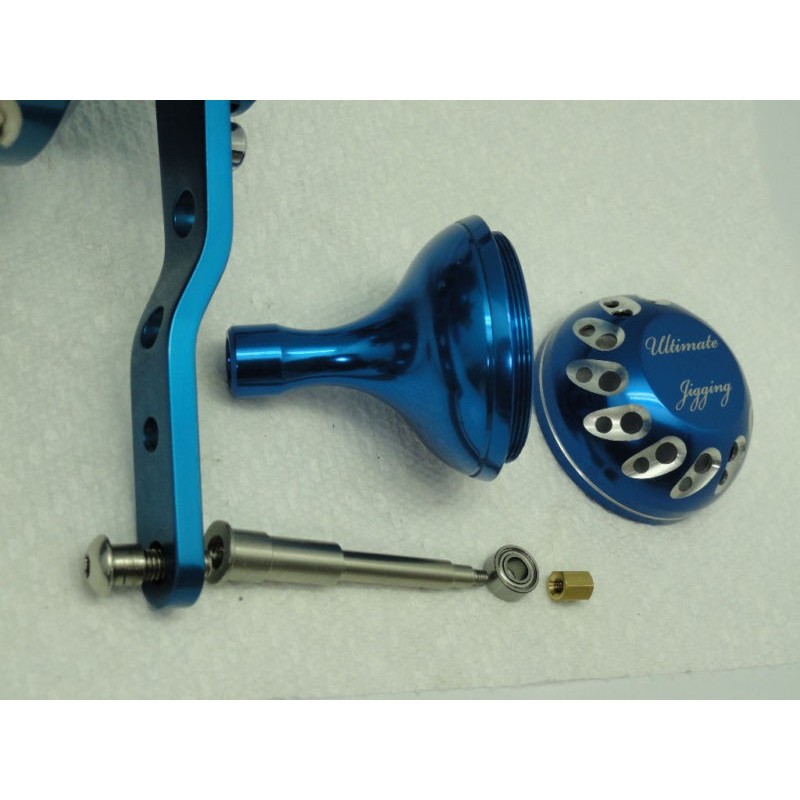

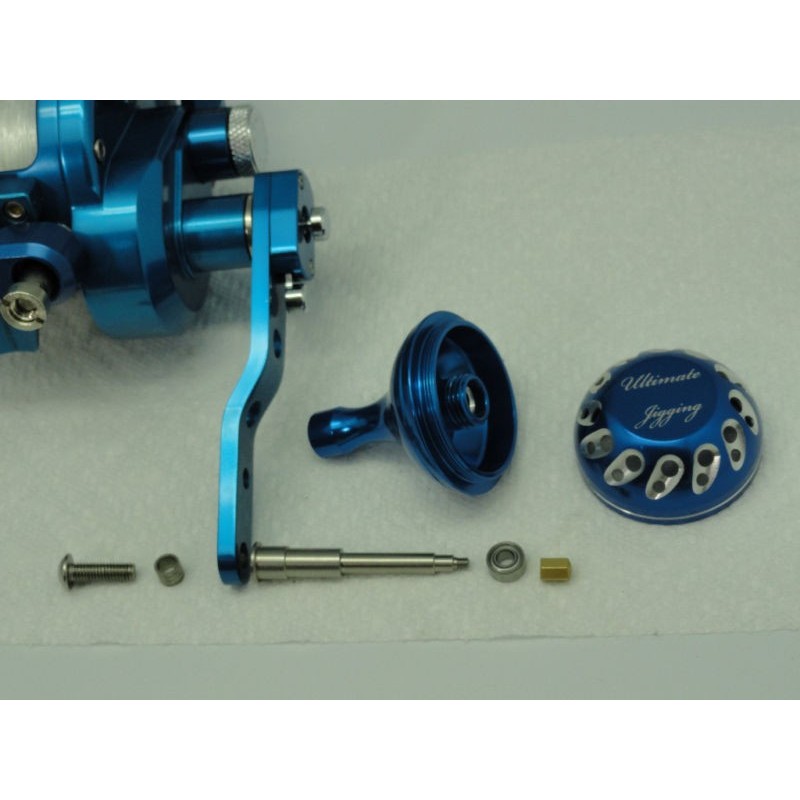

This Ultimate Jigging 45mm Knob - Avet Model is with a B Type Shaft assembly. It is well crafted from solid 6061-T6 aluminum stock with type two anodized and two-tone color. It is very stylish and light weight.

This 45mm Knob - Avet Model with customer B Shaft can be directly assembled on most of Avet and Accurate reels list as below：

• Accurate Boss series including all BX and Xtreme two speed reels.
• Avet SX, MX, JX, LX, HX and Pro EX single and two speed reels (a 6mm sleeve will included in B Kit for Avet reel).
• Fit on any reel has 5mm hole on handle arm after remove original knob.

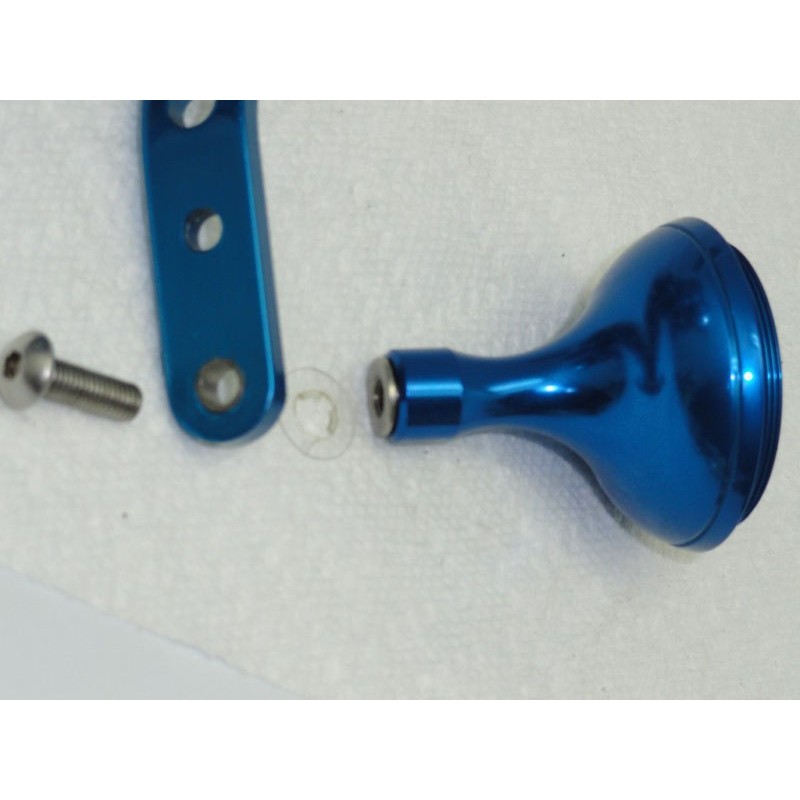

Most of Avet, Penn Reel Handle Knobs are not removable; you need to drill it off from the original knob. The processes are as below:

• Remove whole handle from your reel first, place on flat and steady object;
• Use center punch make a mark at center of rivet before you drill down. Or, you can use smaller size drill bit to drill the center first, then use bigger drill, not need to drill deep, to go deep enough to drill out the rivet flat part.
• If the rivet hole on handle arm is smaller than 3/16” or 5mm, you can use 3/16” or 5mm drill bit to make the hole to fit new knob screw.

Specifications:

• Brand: Ultimate Jigging
• Length：62mm. Dia: 45mm. Weight: 46g/1.6oz.

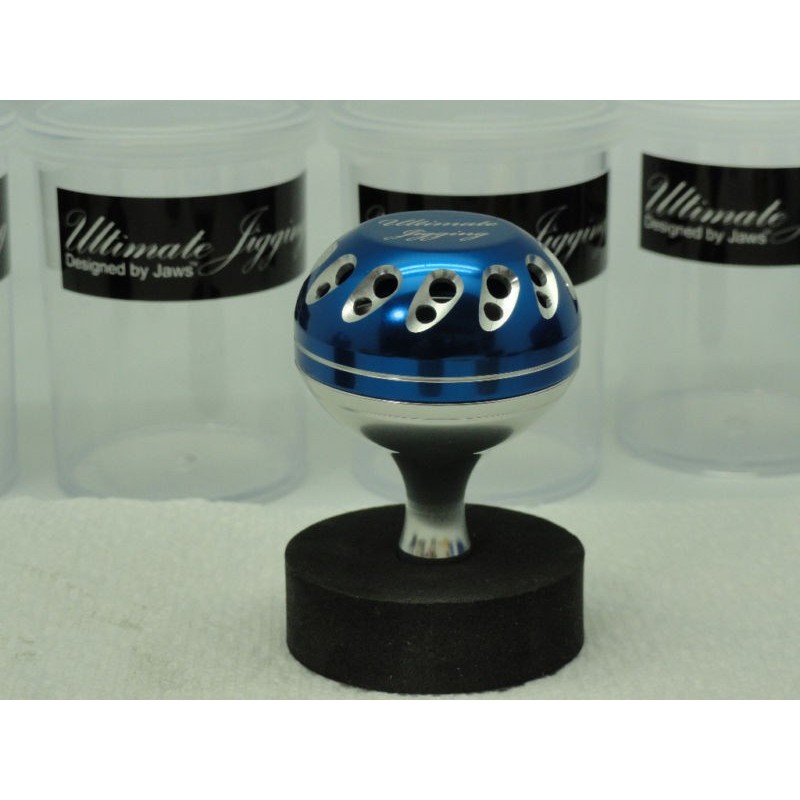

• Available Colors：Black/Gold. Black/Silver. Blue/Silver. Gold/Silver. Pale Gold/Silver. Gunmetal/Gold. Gunmetal/Silver. Red/Silver. Silver/Gold.  (For your prefer, you can choose "Silver" Cup for the 45mm Knob.)
