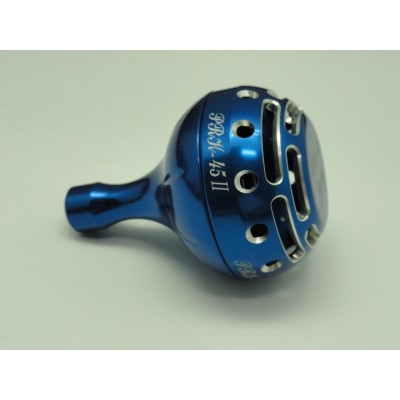

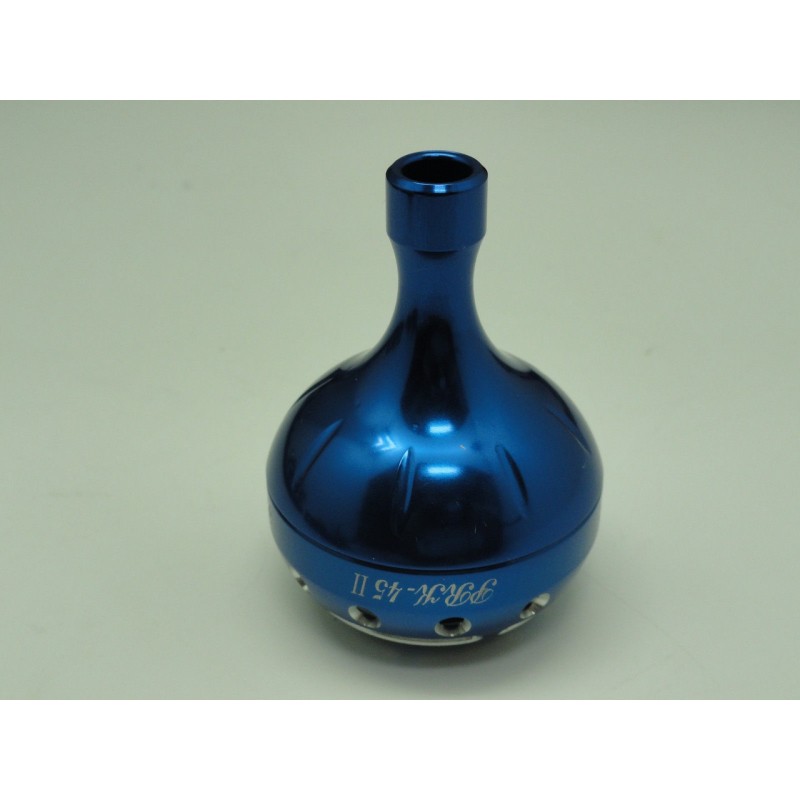

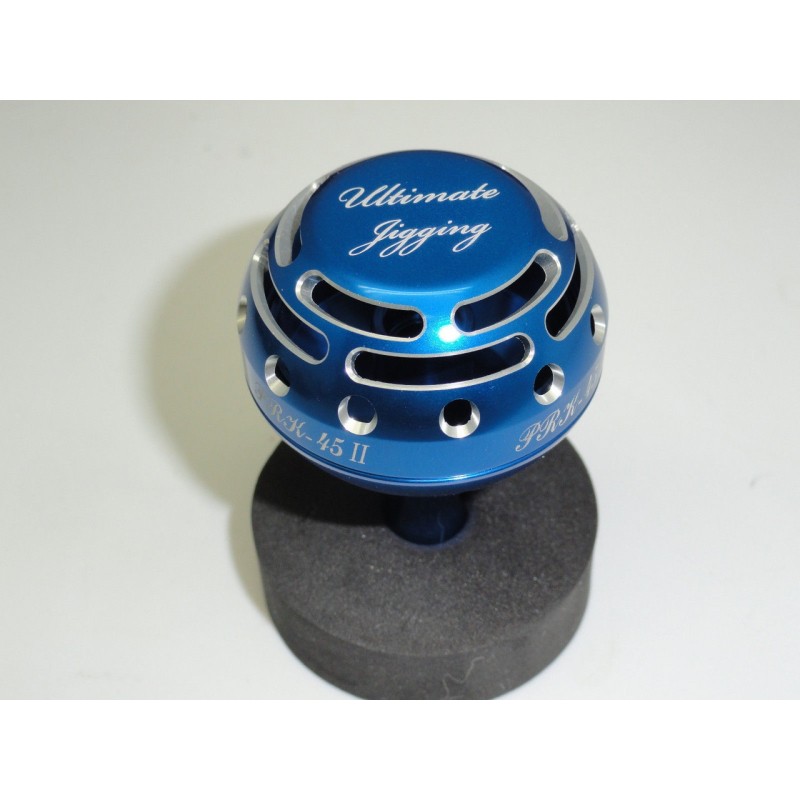

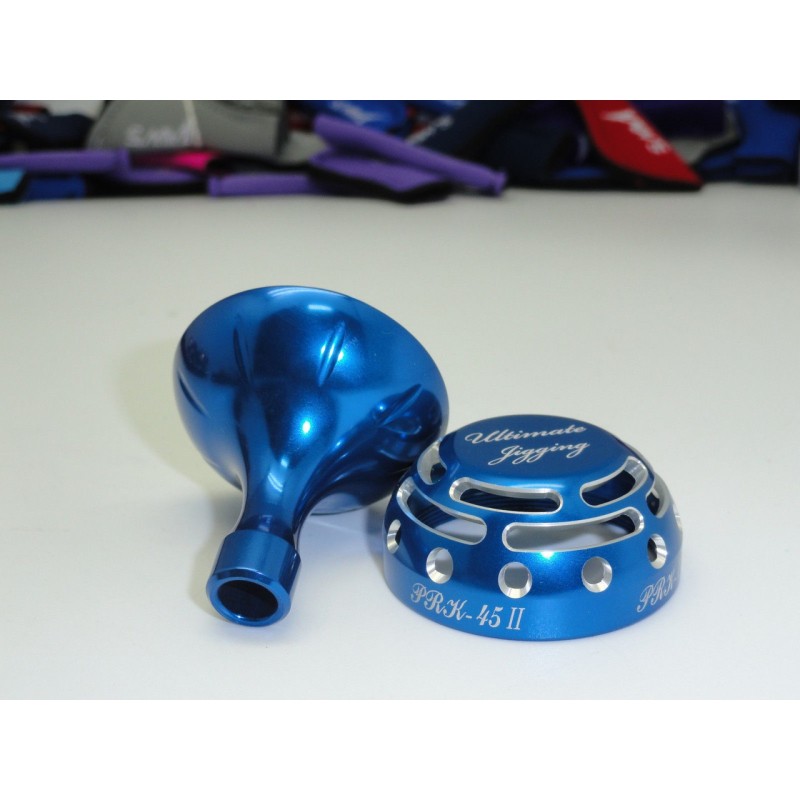

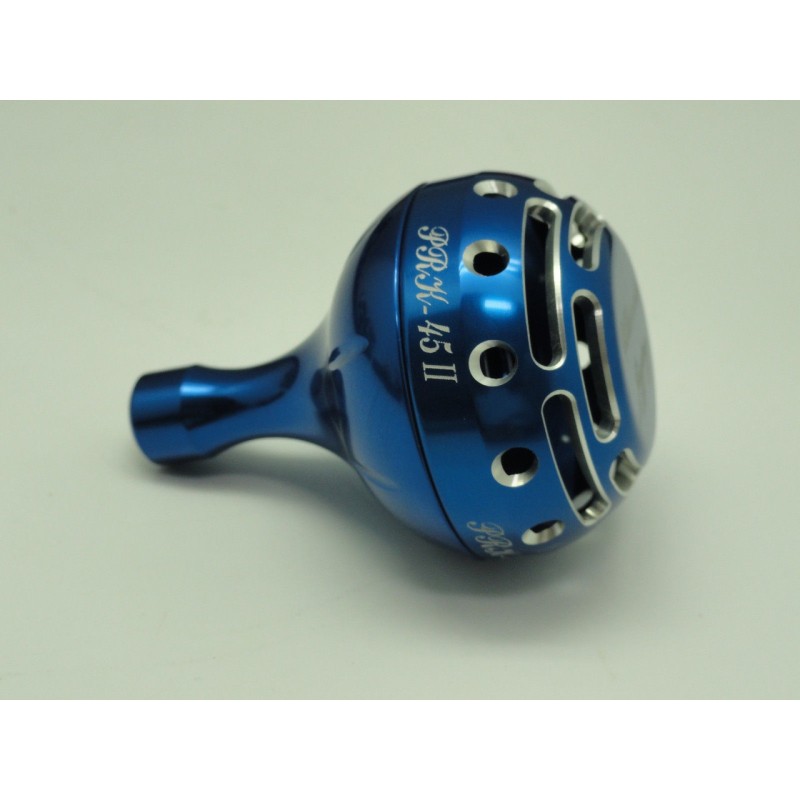

Ultimate Jigging 45mm Power Round Knob Type II (without Bearing) is well crafted from solid 6061-T6 aluminum stock with type two anodized and two-tone colors. This Knob is a true art piece, it takes a lot of machine work, unlike other copies only have holes and lines on it. Indentation design on cup (bottom) to increase grip. It is very stylish and light in weight only 43g/1.5oz. This fine Handle Knob is designed in US and made in Taiwan.

This 45mm Knob Type II Shimano & Daiwa Model can be assembled for the reels list as below (some may need extra bearings):

• Daiwa spinning Saltiga/Saltist 4000~7000, Saltiga/Saltist 20~50, Catalina spinning 4500-6500, Catalina 20-30 or any Daiwa Japan Catalog with Label “L” as Seaborg, Tanacom..and many more. (D Kit, see Installation Tip 2)
• 2008 or newer 2013 model Shimano SW New Stella 4000~20000. (NS Kit, need one 8x5x2.5 Bearing - see installation Tips 5)
• 2008 and newer model Shimano SW Twinpower 4000~12000. (NS Kit, need one 8x5x2.5 Bearing - see installation Tips 5)
• Shimano Stella Saragosa 18000 ~ 25000 SW Reel.(NS Kit, at least need one 8x5x2.5 Bearing - see installation Tips 4)

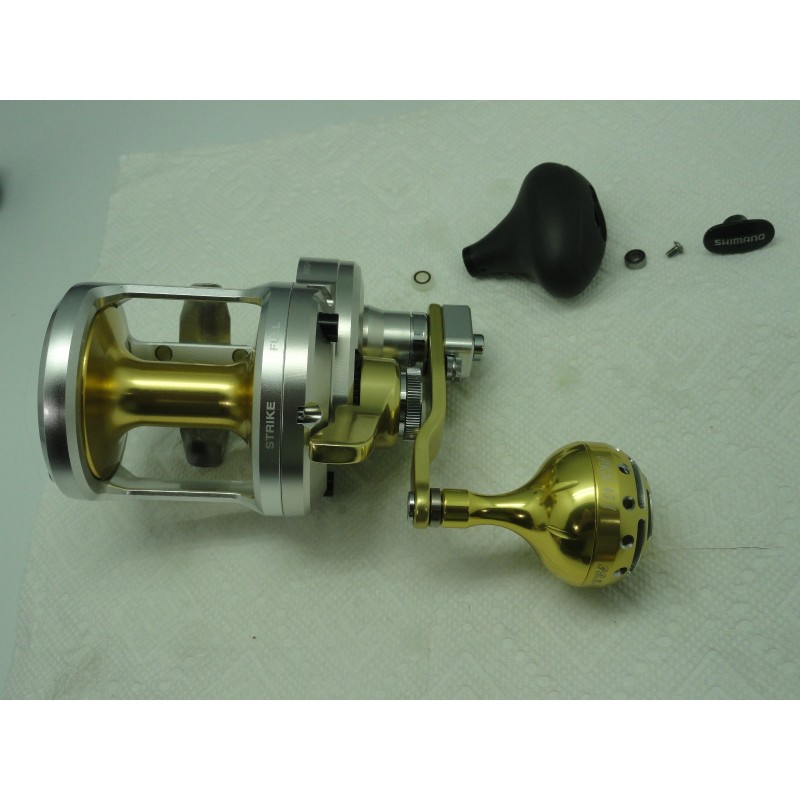

• Shimano new or old Talica single and two speed reels from 8-25. (NS Kit, at least need one 8x5x2.5 Bearing - see installation Tips 3)

If you have any conventional reel (Accurate or Avet) with 5mm round hole on the arm, please see "45mm Knob Type II - Avet Model" Package.

Kits (D, NS and S Kits) and Bearings: (According to your Model of Reels, please have the needed Bearings to install the 45mm Knob Type II.)

• D Kit - Need two 8x5x2.5 Bearings.
• NS and S Kits - Need one 8x5x2.5 Bearing and one 9x4x4 Bearing.

Installation Tips:

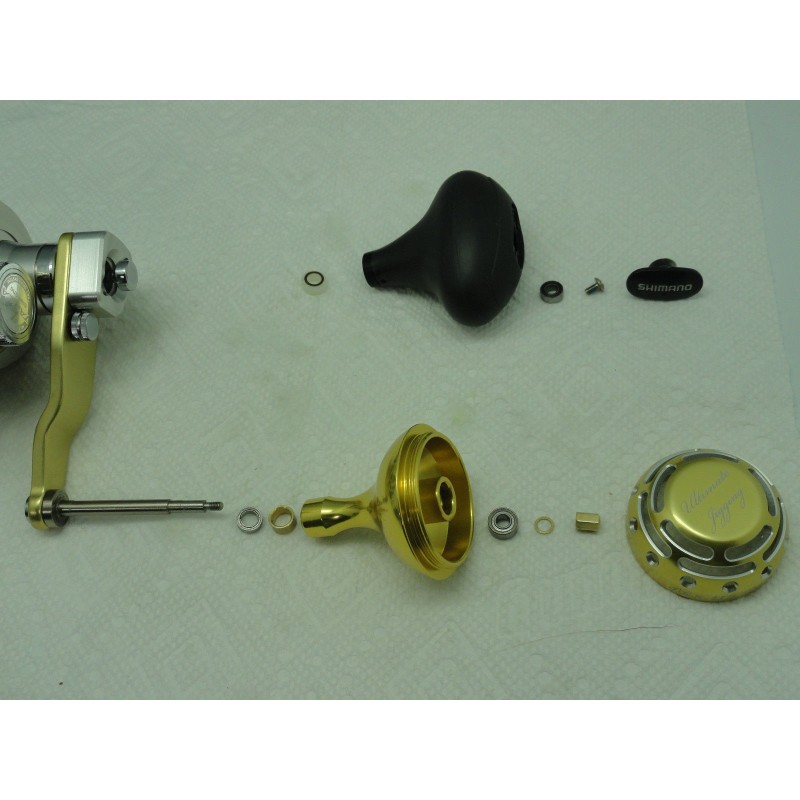

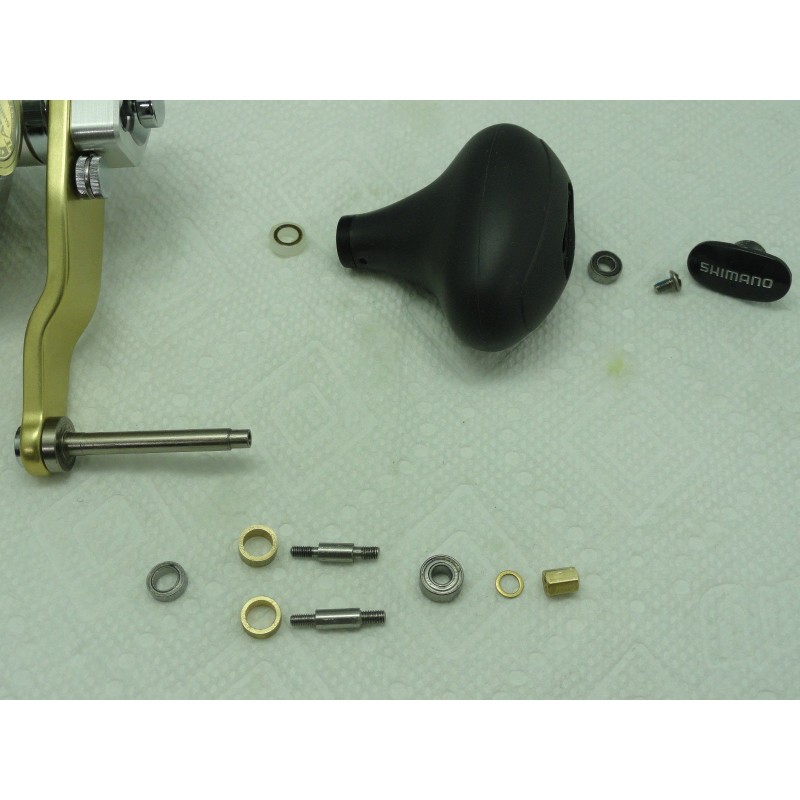

1. Generally, please use the included Kits (D,NS and S) and your original Bearings/Sleeves that removed from the original knob, and follow the diagram instruction to install the 45mm Knob Type II.
2. For Daiwa Saltiga, Saltist, Seabort and Tanacom Reels, please use the D kit associate with two 8x5x2.5 Bearing removed from original knob follow the diagram instruction. Some Daiwa reels does not come with bearing; only plastic sleeve inside of knob, you are still able to install it with D kits provided, but if you prefer, you can purchase two 8x5x2.5 Bearings to replace those.
3. New Talica Reel has no Bearing inside of handle knob, it only comes with one black and one white plastic sleeves; both O.D. is 9mm. However, this Type II 45mm Knob needs two Japanese Bearings (one 8x5x2.5 Bearing and one 9x4x4 Bearing, thus, at least, you need to purchase one 8x5x2.5 Bearing but you still can purchase one 9x4x4 Bearing to replace the 9mm sleeve) with the NS Kit.
4. For Shimano Stella Saragosa 18000 ~ 25000 SW Reel, please just use the NS bearing kit associate with a 8*5*2.5 and a 9*4*4 Japan NSK Bearings to replace plastic sleeves from original knob and follow the diagram instruction. (at least you need one 8x5x2.5 Bearing but you still can purchase one 9x4x4 Bearing to replace the 9mm sleeve)
5. New 2008 and newer model Stella, Twipower and other high-end Shimano Spinning Reel , the  Cup Bearing Size is 9mm but  this 45mm Round Knob comes with 8mm Bearing Housing; that is why a 8mm Bearing will be needed. (Most newer Shimano Reels, using NS Kit, are with 9x4x4 Bearing/Sleeve removed from the original knob, so you still need at least one 8x5x2.5 Bearing.)
6. If you have other brand and model reel; like to install this new Type II 45mm Knob, please email to consult before your purchase.

Specifications:

• Brand: Ultimate Jigging
• Size O.D.: 45mm.
• Weight: 43g/1.5oz.
• Total Length: 52mm.
• Each 45mm Knob Type II Package includes: one 45mm Knob Type II, the Instruction Paper and 3 Kits (NS, S and D). (There is no any Bearing within).
• Available Colors: Black/Gold. Blue/Silver. Gray. Gunmetal/Gold. Pale Gold/Silver. Red/Silver. Silver. Silver/Gold. (For your prefer, you can choose "Silver" cup for the 45mm Type II Knob.)
